Global Trend Leader
No.1 ASOL

Wall Enforced Suspension

STUD & RUNNER SYSTEM

“We provide high-quality products and servicesin order to fulfill the dreams of our customers and are committed to pursuing environmental friendliness and meeting our social responsibilities.”

Properties

This is a lightweight fireproof insulating wall using incombustible steel of light steel frames and fire-resistance and sound insulation of gypsum boards. It has good surface decorative effects and offers the means for inexpensive, rapid and convenient installation for various forms of offices, hallways and living room partitions.

Outline

This is a lightweight fireproof insulating wall made with galvanized sheet iron using fire-resistance and sound insulation of incombustible gypsum boards. As it is good for earthquake-proof construction and nonstructural elements, it is more economical than the existing wet walls and has high surface decorative effects. In consequence, this dry wall is suitable for all forms of nonbearing walls, such as living rooms, bedrooms, hallways and walls.

Construction order

Selection of wall position→ runner installation (ceiling floor) → stud installation → Plaster board pasting → surface board pasting→ finishing treatment

Names of Sub-Materials of Wall Suspension

Table: Name kind signal standards length
W H T
stud
스터드
50Type WS-50 50 45 0.8 less than 2.7m or customization
65Type WS-65 65 45 0.8 less than 4m
75Type WS-75 75 45 0.8 less than 4m
90Type WS-90 90 45 0.8 less than 4.5m
100Type WS-100 100 45 0.8 less than 5m
runner
런너
50Type WR-50 52 40 0.8 3,000mm
65Type WR-65 67 40 0.8
75Type WR-75 77 40 0.8
90Type WR-90 92 40 0.8
100Type WR-100 102 40 0.8
reinforcing channel
보강찬넬
WB-19 19 10 1.2 4,000 / 5,000mm
WB-25 19 10 1.2

Quality of Wall Suspension

Material : Galvanized sheet iron (KS D 3506)

stud-runner-en

① Shape of sub-materials, stability

1) Lateral bending: Stud & runner: Less thanL/2L/1,000mm
Reinforcing channel: Less thanL/2L/1,000mm
2) Curving: Less thanL/2L/1,000mm

② Shock-resistance :
The maximum residual bending quantity should,
be less than 10mm, and there should be no folded or
missed sub-materials.
② Loading strength :
Maximum residual bending quantity: Less than 2mm

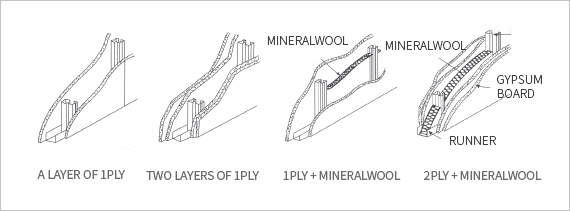

Detailed construction drawing

stud-1-2-en

Way to paste gypsum boards

stud-2-2-en

Dry wall

Photo of construction site

시공사진1
시공사진2
시공사진3
